Did you know that our 92 cm Panel Fan is also available with energy-efficient Vplus technology? Thanks to this technology, you get the same airflow with about 20% less energy consumption. With the supplied frequency controller, you can continuously adjust the fan speed, making the fan even more efficient. This can even lead to up to 70% energy savings compared to the standard Multifan 92 Panel Fan controlled by a triac. Depending on the number of operating hours and the fan speed, this fan pays for itself in a short time!
When should you choose the 92 cm Panel Fan Vplus?
Multifan fans are designed for the demanding conditions of the agricultural sector, which makes this fan a true all-rounder. Use it as a circulation fan to efficiently distribute air in large spaces such as barns, or install it in the wall for powerful exhaust. Do you use the fan not to counteract heat stress, but to gently circulate air to prevent condensation? Or would you like to ventilate less in winter to reduce heating costs? Simply lower the speed with the supplied frequency controller, which you can connect directly to your climate computer via a 0–10V or 10–0V signal.

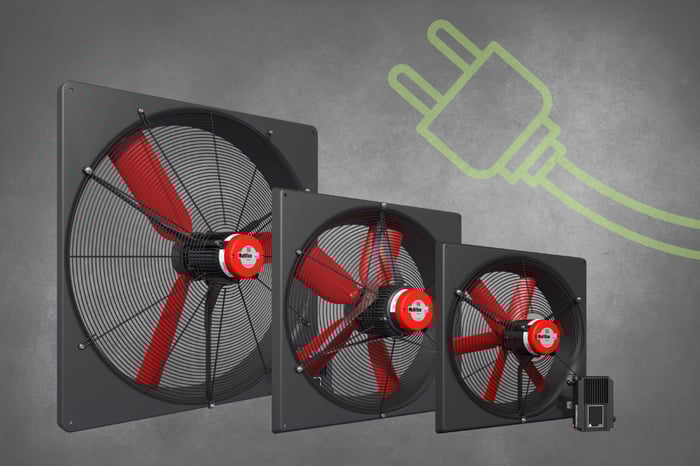

You can recognize ECplus and Vplus fans by their red caps:
What is the difference between ECplus and Vplus technology?
Both ECplus and Vplus fans are controlled by an MFD frequency controller, which, with advanced vector control, determines the rotor position without an encoder. This allows the controller to get the maximum out of the motor and ensures very precise performance. ECplus motors are equipped with a conventional rotor: a robust and reliable combination. If the controller fails, you can bypass it and run the fan at full power, a frequently requested feature by customers for whom ventilation is crucial.
Vplus motors, on the other hand, have a rotor with permanent magnets. As a result, the motor consumes less power, making these fans among the most energy-efficient on the market. The disadvantage is that you cannot bypass the controller and that repairs often cannot be carried out on-site.
Is ventilation essential in your business? Then choose the robust AC technology of the standard Multifan or the ECplus fan. Looking for the most energy-efficient solution? Then Vplus technology with permanent magnets is the best choice.
*Graph shows the operating range of a 92 cm Panel Fan with speed control.
How do I save money with ECplus or Vplus technology?
According to the fan laws, you save 50% energy with a frequency controller when you reduce the fan speed by 20%. Airflow also decreases by 20%. In addition, static pressure plays a role in exhaust fans. In the diagram below, we compare three types of 92 cm Panel Fans:
-
At the bottom right of the triangle, you can see the airflow at 100% speed and 0 Pascal pressure.
-
The right side of the triangle shows how much air the fan moves at different pressure levels, at maximum speed. More pressure results in less airflow at the same speed.
-
If you reduce the fan speed, look for the desired airflow and required working pressure in the fan’s operating range.
With the standard fan (triac control), you can see that efficiency decreases when the speed is reduced. Power consumption drops, but airflow drops even faster. This means you get less airflow per watt consumed. With ECplus and Vplus technology it’s different: power consumption decreases proportionally faster than airflow, which leads to higher efficiency. In addition, both ECplus and Vplus fans are significantly more efficient than the standard version under all conditions. Even at maximum speed, they move more air per watt consumed.
What’s more, ECplus and Vplus fans move more air at full power than the standard version. That does require slightly more energy, but if you reduce the speed of a Vplus fan by 20%, it delivers the same airflow as the standard fan at full power with about 35% less energy consumption.
Conclusion
Are you looking for a simple on/off fan? Then the standard fan is the most economical choice. Do you have a climate system where the fan speed often varies? Then ECplus or Vplus fans can save a lot of energy in the long run. Is ventilation essential in your situation? Then choose the reliable AC motor of our ECplus fan. Do you want the most energy-efficient fan on the market? Then Vplus technology with permanent magnets is the best choice. For more information, please contact one of our specialists.
